#1 2022-02-28 22:47:57
[Standalone] Ways to interact externally with standalone module
Hi,
Besides bluetooth with the blue shark module. Is there any other way to communicate externally with your standalone module?
I tried to see any USB/UART capabilities but the only way i saw so far is using usart_* APIs which are for bluetooth/blue shark module. The idea is to be able to communicate with my python code running in a laptop and able to send/receive data to/from my standalone module over USB/UART...
Thank you.
#2 2022-03-01 17:49:53
Re: [Standalone] Ways to interact externally with standalone module

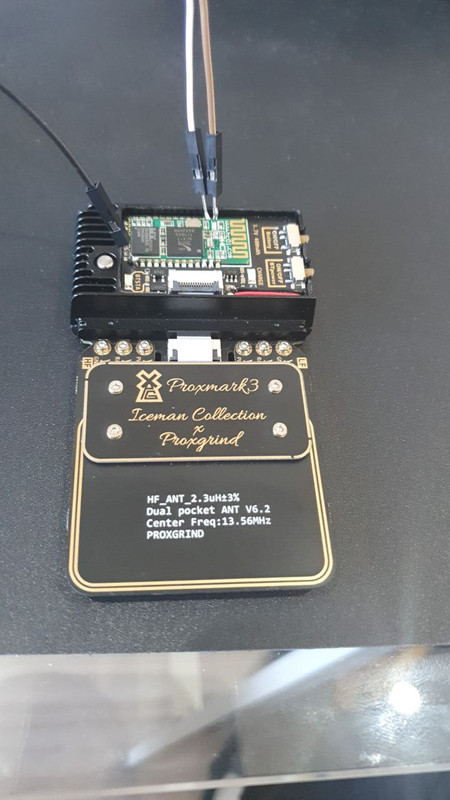

Well, since nobody said anything here or discord I went ahead and found the UART pinout in the blueshark module. Soldered some cables and now I'm able to communicate with my standalone module through the UART directly without bluetooth (for timing issues).
At this stage I'm not sure if there is other way to do this but this is the only way i saw.
Last edited by delorean (2022-03-01 17:50:37)
